Why choose Instech?

If you're familiar with industrial pumps, like Harvard Apparatus, KD Scientific, New Era or Chemyx...

If you're familiar with pumps originally designed for human medicine, like Baxter/SAI, OrchesTA or Medfusion...

  • For ease of use. The pump features a modern touchscreen and a simplicity that hospital pumps can't match.
  • For accuracy. Rigid construction and a unique clutchless design lead to accuracy of ±0.5% compared to 2-3% for most clinical pumps.
  • For low flow studies. With smooth microliter flow rates, the pump is ideal for intrathecal dosing, microdialysis and mouse infusion, applications where pumps designed for humans become useless.
  • For lower cost. The pump has the safety features of a clinical pump but the price of a laboratory pump, and design that's at the beginning of its life not the end.

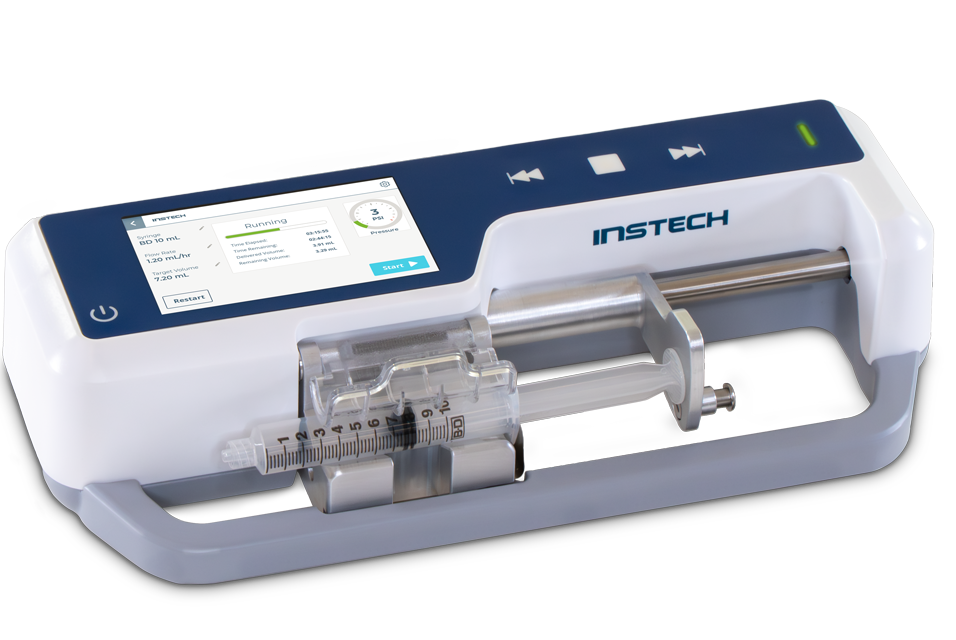

P400

Key Specifications

Accuracy ±0.5%
Minimum flow rate, 1mL syringe 1 µL/h
Minimum flow rate, 1µL syringe 0.001 µL/h
Maximum flow rate, 50mL syringe 120 mL/min
Step resolution 0.02 µm
Compatible syringes B-D plastic and glass, HSW Normject, Hamilton, Custom (user defined)
Pressure monitor 0-20 PSI with 1mL and larger syringes
Occlusion alarm settings 10, 15, 20 PSI, off
Orientation Horizontal or vertical
Power loss protection Auto-resumes infusion when power restored
Battery operation Compatible with external USB PD3.0 battery packs
Weight 1.7 kg
Size 31x13x6.5 cm



Ordering Information
