P625 Pump Tube Sets

P625 peristaltic pump tube sets are available in a range of sizes and materials to suit your application. Specify a tube set using the following part number format:

P625/TS[D][size][material]

Where,
[D] = dual tubes (015, 020 and 031 ID only)
[size] = ID in thousandths of inches (015, 020, 031, 062, 093)
[material] = S (silicone), C (C-Flex®), P (PharMed®), T (Tygon® F-4040A), L (Tygon® LFL), V (Viton®).

For example: P625/TS031S specifies a single channel silicone tube set with 0.031" ID.

The standard length is one foot (30.5 cm). Custom P625 tube sets may be available, depending on your application. P625 pump tube sets are not autoclavable, though tube sets may be special ordered with EtO sterilization.

P625 pump tube wall thicknesses are always 1/32in (.031in/0.8mm), so the OD will always be .062in larger than the ID. For materials other than silicone, sizes are limited. Higher durometer tubing sets require pumps with smaller OD rotors. Please download the PDF below for complete information.

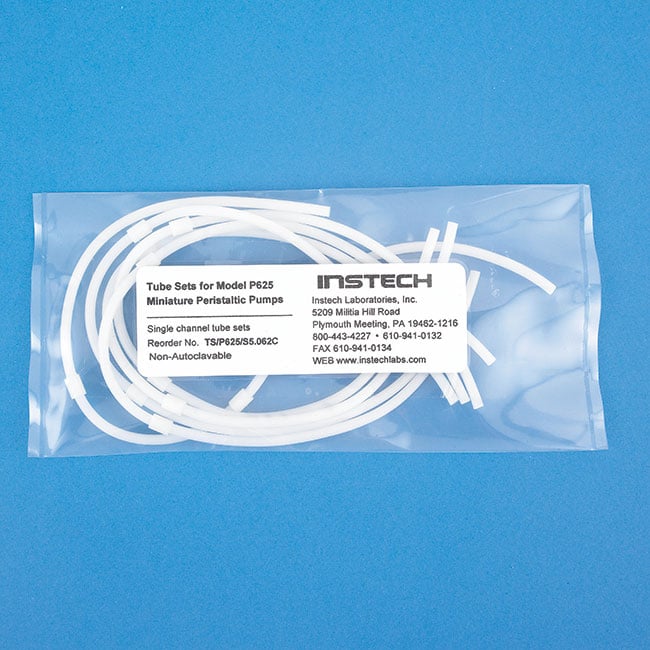

Tube sets are sold in packages of five, as shown.

P625 Pump Tube Sets

Flow Rate Ranges

Tube ID (in) P625/10K.xxx P625/900.xxx P625/275.xxx P625/66.xxx
.015 0.7 - 6.7 µl/min 8 - 80 µl/min 17 - 170 µl/min 0.06 - 0.6 ml/min
.020 1.2 - 12 µl/min 14 - 140 µl/min 34 - 340 µl/min 0.1 - 1.0 ml/min
.031 3.4 - 34 µl/min 40 - 400 µl/min 90 - 920 µl/min 0.3 - 3.0 ml/min
.062 14 - 145 µl/min 170 - 1700 µl/min 340 - 3400 µl/min 1 - 10 ml/min
.093 28 - 275 µl/min 330 - 3300 µl/min 730 - 7300 µl/min 1.9 - 19 ml/min

Ordering Information
